Six Bar

The six bar lift, the four bar's big brother.

PreviousScissor LiftNextOther Lifts

Last updated 11 months ago

Was this helpful?

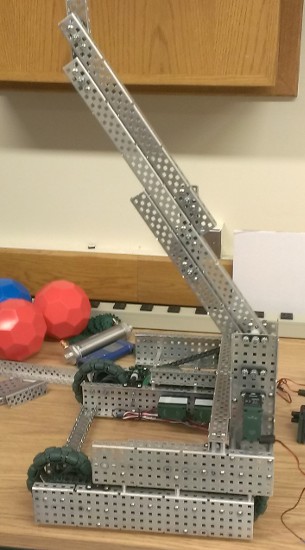

The six bar lift is a derivative of the . It utilizes the same geometry of four parallel bars, but in two stages. This split into two stages allows the lift to maintain a lower profile on the robot and condense into a smaller space, allowing for a larger lift to fit within the build limits.

Pros and Cons Analysis

Pros

Cons

  • Relatively easy to build and maintain

  • Front heavy when horizontally extended; more likely to tip forward

  • Increased potential for friction and slop due to the increased number of joints

Because the lifting length is longer on a six bar than a four bar, more torque is required in order to lift the arm to its full height. The weight and length of the six bar lift also creates additional friction on the joint of the lift and the motors powering it. This can lead to more issues than would be encountered with a four bar lift such as burnt out motors or broken parts. The added length of the lift arm can create a greater tendency for the robot to tip forward when lifting or moving. Heavier loads will increase this chance of tipping. Despite these issues, the six bar lift is a very common lift system as well because it is relatively easy to build and maintain when compared to scissor lifts and reverse six bar lifts. Like the four bar lift, the six bar lift keeps the lifted end at the same angle throughout a lift or decent.

Resources

Teams Contributed to this Article:

  • MTBR (University of Michigan Task Based Robotics)

It is typically recommended that only the top bar on the static end be driven by the motors, as there will be increased friction on the bottom arm as compared to the top. This can be alleviated by utilizing a PID control on the arm to ensure that one motor does not provide more force than the other on a given side, stressing the lift components and motors. As with every lift, using is highly encouraged to reduce friction, decrease slop, and increase strength.

If built properly, can reach higher than a lift on its own.

Similar to a four bar, this lift has a relatively easy implementation into adesign.

More torque necessary to lift to full height than a

(Purdue SIGBots)

⚙️
BLRS
four bar
four bar
four bar lift
"double reverse"
LogoSix-Bar Linkages - AURAAURA
Article from VexU team AURA overviewing six bar lifts
Video demonstrating the basic geometry of a six bar lift, courtesy of team 10D
screw joints

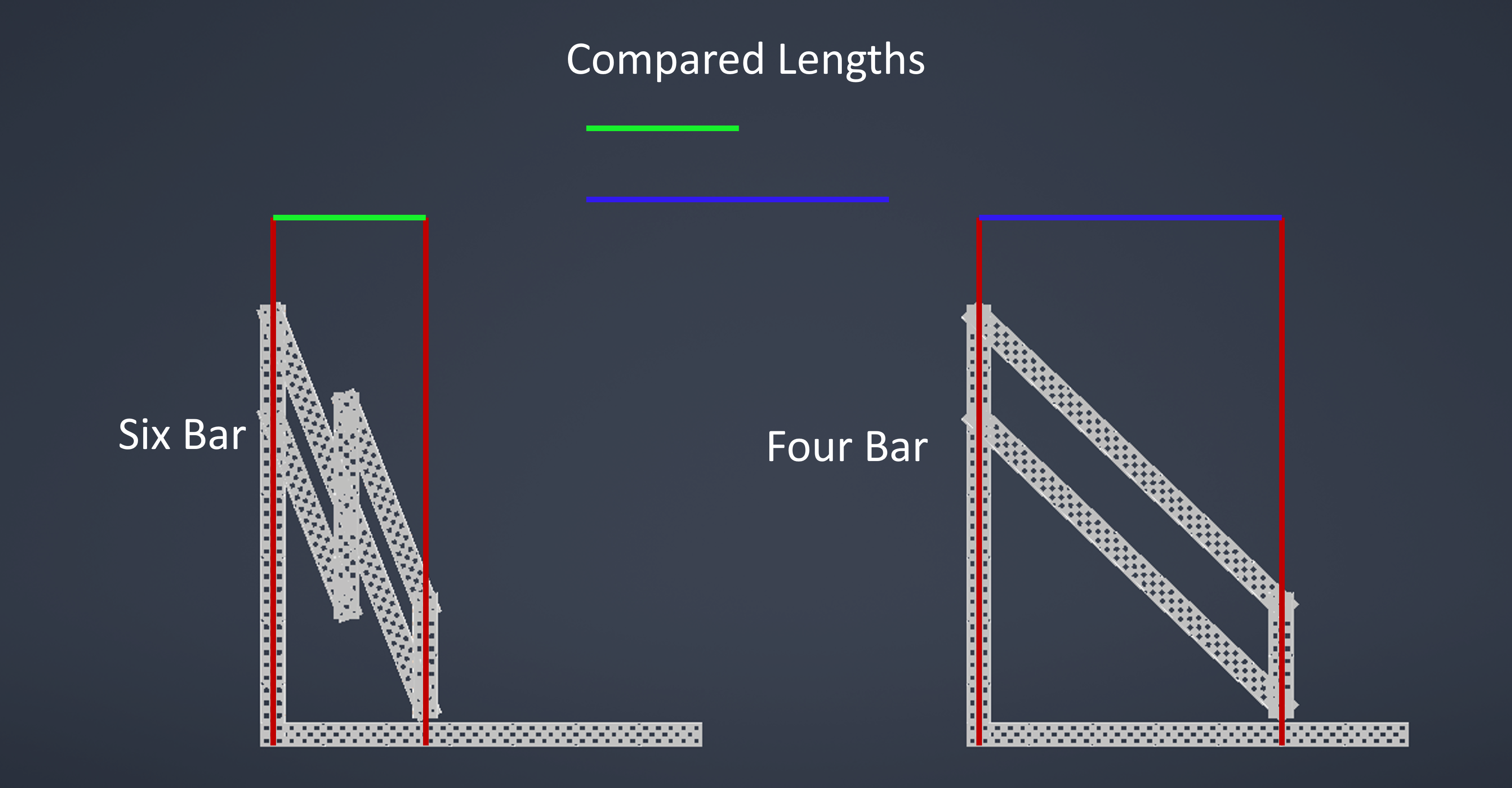

Visual comparison of the difference in compactness between a six bar and a four bar

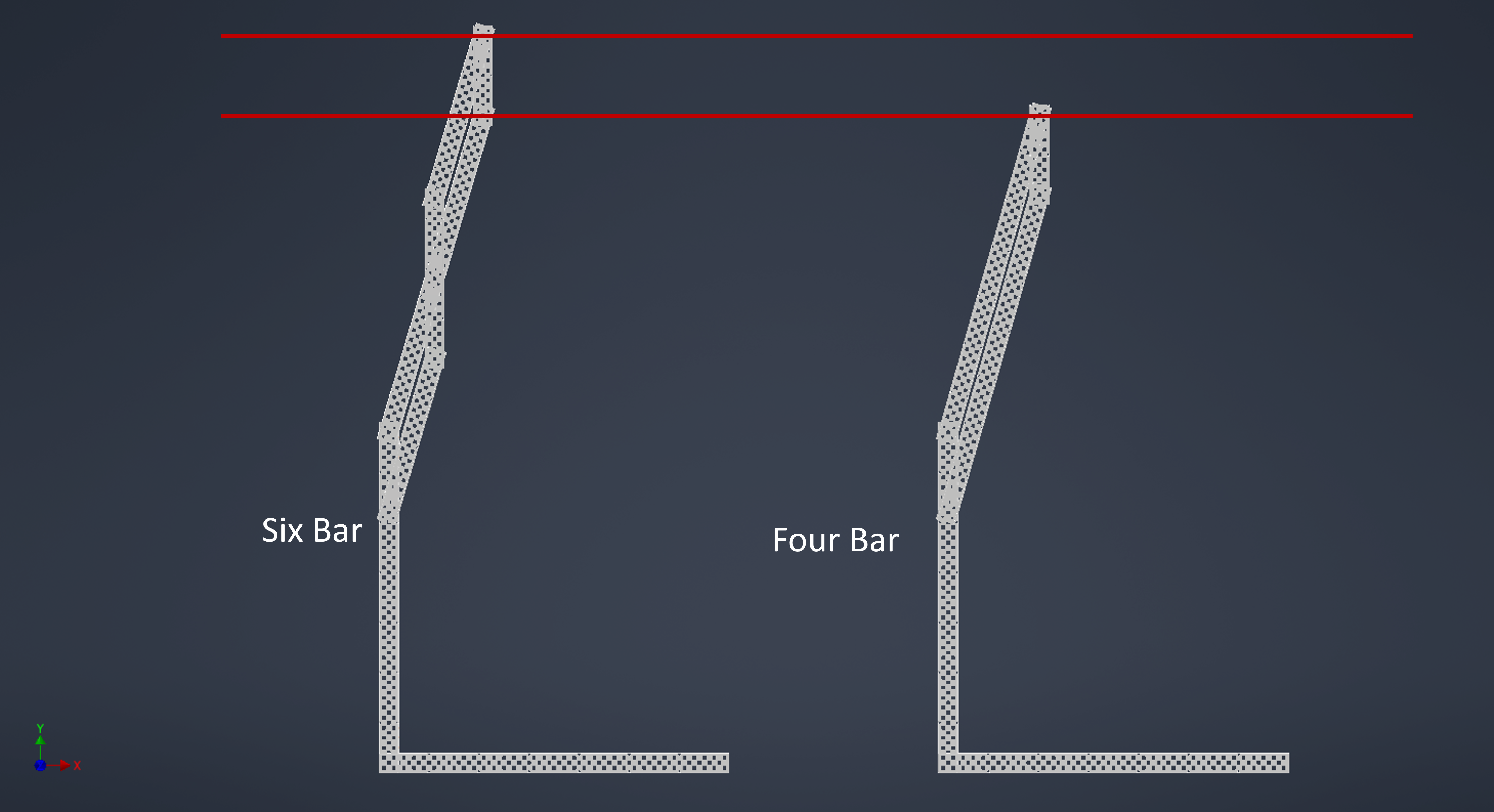

Visual comparison of the height difference between a six bar and a four bar when fully raised
