Best Practices

Tips and Tricks for building good lifts.

Bracing

Bracing is the act of securing a lift with bars at the base of the lift, between different lift bars, and other places where there may be a need for structural support. Many teams iteratively find some of these areas as they test their design. This article further discusses the two most common types of bracing seen in good lift designs.

Bracing is the most crucial aspect of designing a stable (and fast) lift. It may seem counter-intuitive, but adding weight for a better braced lift can often improve its speed. 2017-18's game ITZ and 2014-15's Skyrise caused a lot of the research into this topic.

Note: All references to "X-by" refers to a c-channel of hole width X.

X-bracing

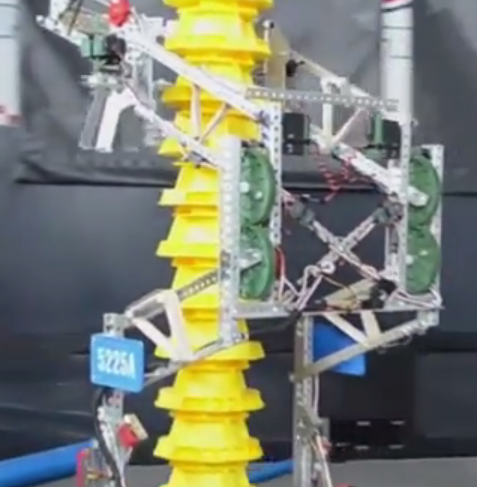

X bracing is the most common strategy used in bracing a lift. Structurally, it has strong tension, but not much else. As a result, it works well with 1 hole wide c-channel on the middle of a DR4b, for instance, but using c-channels won't give you much improvement. It also will not prevent twisting, which the main problem plaguing most VEX lifts.

Be sure not to use this strategy with 1x metal, as it will likely have little noticeable impact.

5-by bracing

Bracing with horizontal 5 hole wide C-Channels (often doubled up) was a common and very effective technique used by New Zealand teams in 2017-18's ITZ to brace the bottom section of DR4Bs. This is the most effective way to prevent the lift from twisting, and while the doubled 5-by is very heavy, the additional stability causes the lift's joints to be more efficient and the lift to be faster. To make this approach more effective, use shoulder screws to keep holes aligned better.

Joints

Joints are commonly used in lifts to reduce slop and friction. See joints for more info.
